Paper Insulated Copper Conductor (PICC)
with 2 and 3 bunched
Paper Insulated Copper Conductor (PICC)
with 2 and 3 bunched
Paper Insulated Copper Conductor (PICC)
Paper Insulated Copper Conductor (PICC)
Paper/Polyester Insulated Copper Conductor (PICC) with 2, 3 bunched
Bhagyanagar India’s Paper Insulated Copper Conductors (PICC) showcase our commitment to engineering versatility and reliability. Offered as both paper-insulated copper strips and paper-insulated copper wires, these conductors are manufactured with premium insulation materials like Thermokraft IEC 554-2 and Nomex T-410, tailored to exact customer specifications.
Available in widths of 3 mm to 16 mm and thicknesses of 1.2 mm to 6 mm for strips, and 1.2 mm to 2.5 mm diameter for wires, each PICC adheres to stringent international standards such as DIN EN 13601 and IS-8572:1993, ensuring performance consistency for critical applications. We also produce 2, 3 bunched with individual paper covering and bunched with overall covering for both base strip and enamel strip.
We also produce 2, 3 bunched with individual paper covering and bunched with overall covering for both base strip and enamel strip.
| Insulation | ||
|---|---|---|
| Paper Types | Standard type Thermokraft IEC 554-2 VDE 0311 Standard tip Nomex T-410, as per customer requirement. | |
| Dimensions | Copper StripsWidth: 3mm - 16mm Thickness: 1.2mm - 6mm |
Copper WiresDiameter: 1.2mm - 2.5mm |
| Standards | DIN EN 13601 (DIN 46433-DIN 40500/3), DIN 46434, DIN 46452, IS-8572:1993, as per customer requirement. | |
Applications

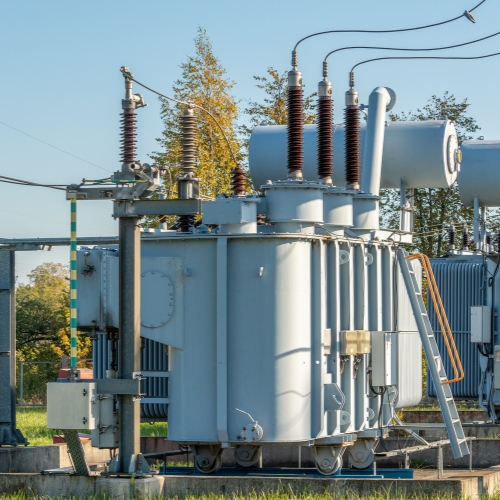

Transformers
Insulation
