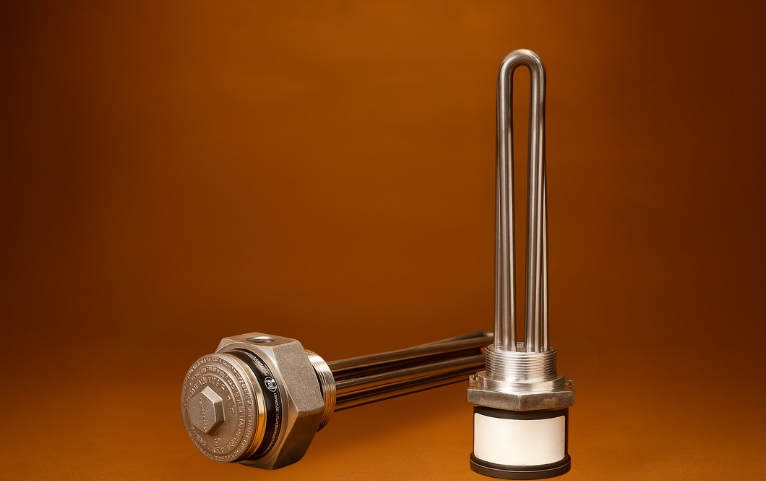

Heating Element
|
Thermostat
|
Immersion Water Heater
|
|---|---|---|
|
IS - 4159
|
IS - 3017
|
IS - 368
|
Raw Material Inputs:
- Copper Tubes
- Nicrome wire
- Insulation Powder (MgO)
- Brass Flanges, Screws and Nuts
Process
- Cut length copper tube
- Nicrome wire is wound like a coil on the coiler and terminal pins are spot welded on both ends
- The Coil is stretched inside the copper tube co-axial to the copper tube and cap is provided at one end and placed on to the filling machine and Insulation powder is filled through and the other end is closed with plastic cap and all pipes are removed in a batch.
- Squeezing
- Hot Annealing
- Bending
- Brass Flange Brazing
- Cleaning and Boring
- Nickle Plating
- Assembly
Quality tests
|
Sl.No
|
Tests
|
Specification
|
|---|---|---|
|
1
|
Rating
|
230V,2000W,50 Hz
|
|
2
|
Visual Examination
|
As per IS-4159
|
|
3
|
High Voltage test
|
At 1500V for 5 sec
|
|
4
|
Input (at 230 V)
|
2000W (+5% , -10%)
|
|
5
|
Leakage Current
|
210 µ amps Max
|
|
6
|
Moisture resistance
|
Electric strength at 1250V for 1Min
|
|
7
|
Temperature Rise
|
At terminal 75 ° C Max At Room temp 24 ° C
|
Packing
Each Heating element is wrapped in polythene cover and packed in a corrugated box and as per customer requirement.
